LIH(St)H-TP FE 180 PH120

Açıklama

Structure

Conductor: Electrolytic Stranded Annealed Copper Wire, Class 5, EN 60228, IEC 60228, VDE 0295 Insulation: Special Silicone Compound Insulation Color: DIN 47100 Twisting: Twisting in Double Coats Separator Tape: PES Tape and Glass Fiber Tape Screen: AL-PES Tape and Tinned Copper Earth Wire Outer Sheath: EN 50290-2-27 HFFR Compound Outer Sheath Color: RAL 2003 Orange

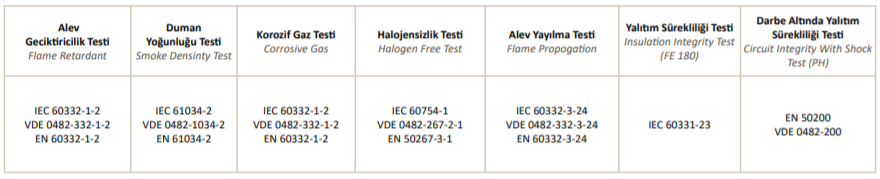

Fire Performance Tests
